Name: ATEM 4 M/E Constellation HD
Brand: ATEM
Availability: InStock

Specifications

Video inputs

40 x 3G-SDI

Video outputs

24 x 3G-SDI, all assignable as aux

Video formats

720p50/59.94/60, 1080i50/59.94/60, 1080p23.98-60

Mix effects

4 M/E, 16 upstream keyers, 4 downstream keyers, 4 DVEs, 2 SuperSource

Media players

Multiview

4 x 3G-SDI multiview outputs

Audio inputs

8-ch embedded SDI, 2 x balanced 1/4in, 32-ch MADI, 5-pin XLR talkback; 156-ch Fairlight mixer

Control

Ethernet, front panel, ATEM Software Control, optional hardware panels

Power

2 x internal 100-240V AC, approx 147W

Rack size

2 RU

Category

Live & switching

Rate basis

Daily · weekly · production block

Availability

Subject to booking — confirm dates with us

Pickup

Phnom Penh, Cambodia · delivery to set on request

Specifications verified against blackmagicdesign.com.

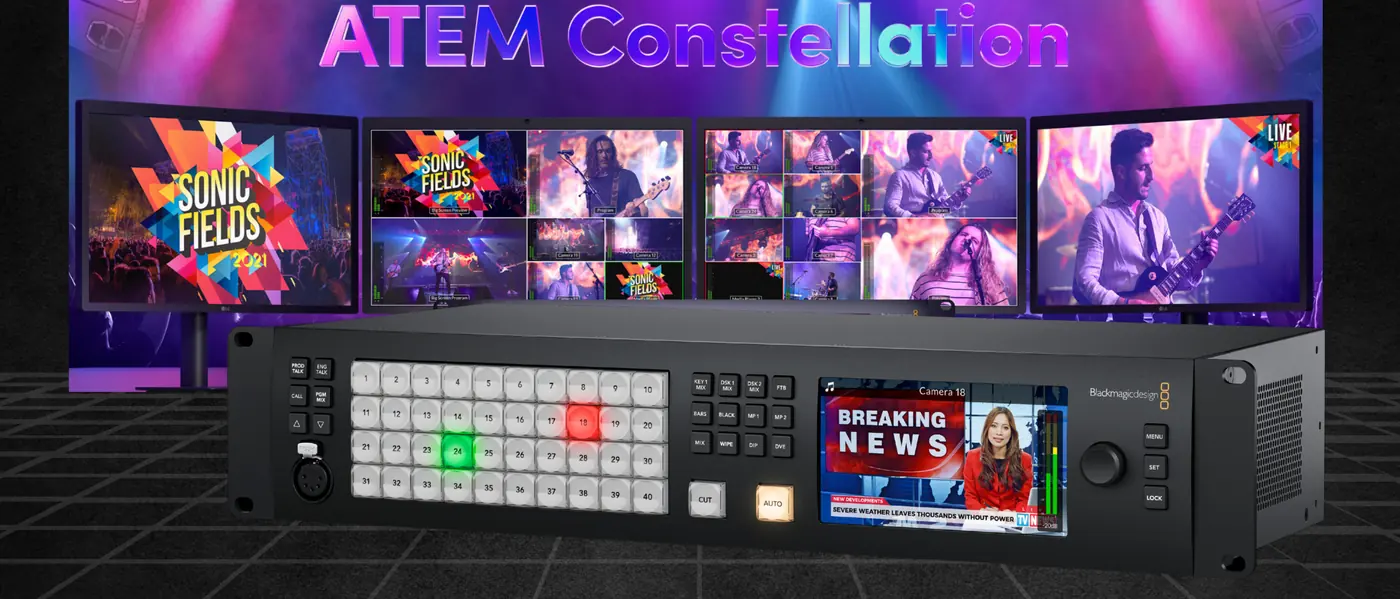

ATEM 4 M/E Constellation HD

A full broadcast-grade 2RU switcher with 40 SDI inputs and four independent M/E rows, built for large multi-camera shows, sports and studio productions. Every input has its own format converter, so mismatched cameras and playback sources all lock to the programme standard. It is HD only with no built-in streaming encoder or ISO recording, and it really wants a hardware panel and an experienced TD.

Rack unit

Day rateOn enquiry

Add it to your list and send everything in one message, or ask about this single item right now. We answer seven days a week, 08:00–20:00 ICT.
