Notepad-8FX Analog Mixing Console — cinema equipment rental, Phnom Penh

Specifications

Channels	8 analogue inputs (2 mono mic/line, 3 stereo)
Mic inputs	2 x combo XLR-1/4in with Soundcraft preamps
Phantom power	+48V to all mic inputs
EQ / filters	3-band EQ on channels 1-2, 100 Hz high-pass
Effects	Lexicon reverb, chorus and delay with tap tempo
USB interface	USB-B, 2-in / 2-out
Outputs	Stereo master on XLR, monitor out, mono aux send, 1/4in headphone
Frequency response	20 Hz - 20 kHz, ±1.5 dB
Power	External PSU, 18V DC 1.3A (included)
Enclosure	Metal, not rack-mountable
Category	Audio
Rate basis	Daily · weekly · production block
Availability	Subject to booking — confirm dates with us
Pickup	Phnom Penh, Cambodia · delivery to set on request

Specifications verified against soundcraft.com.

Audio

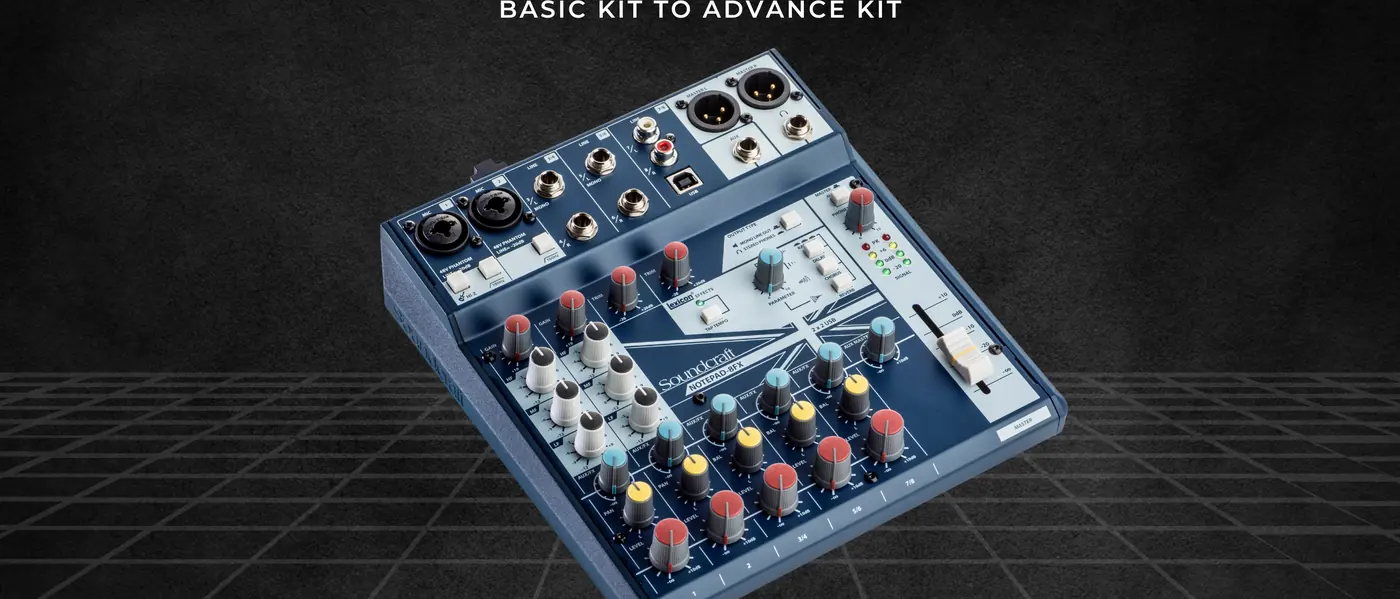

Notepad-8FX Analog Mixing Console

Name: Notepad-8FX Analog Mixing Console
Brand: Notepad-8FX
Availability: InStock

A small metal-chassis analogue desk with two Soundcraft mic preamps, 48V phantom, 3-band EQ and onboard Lexicon reverb, chorus and delay, plus a USB interface so it doubles as a computer soundcard for streaming. Handy on set for feeding playback, running a couple of mics into a camera, or as a simple mixer for small events. Only two of the eight channels take microphones, and the USB path is a fixed 2-in/2-out, so it cannot deliver multitrack stems.
